Active sweepable mid-range EQ
Stockwell is an active mid-range EQ which provides approximately 15db of boost or cut sweepable between 200 Hz and 8 kHz. Use it before a dirt circuit to affect its timbre, clarity, and harmonic content or after a dirt circuit to provide a wide range of equalization possibilities with just two simple controls. It can be built as a stand-alone pedal or used as a mod to add EQ control to another circuit.

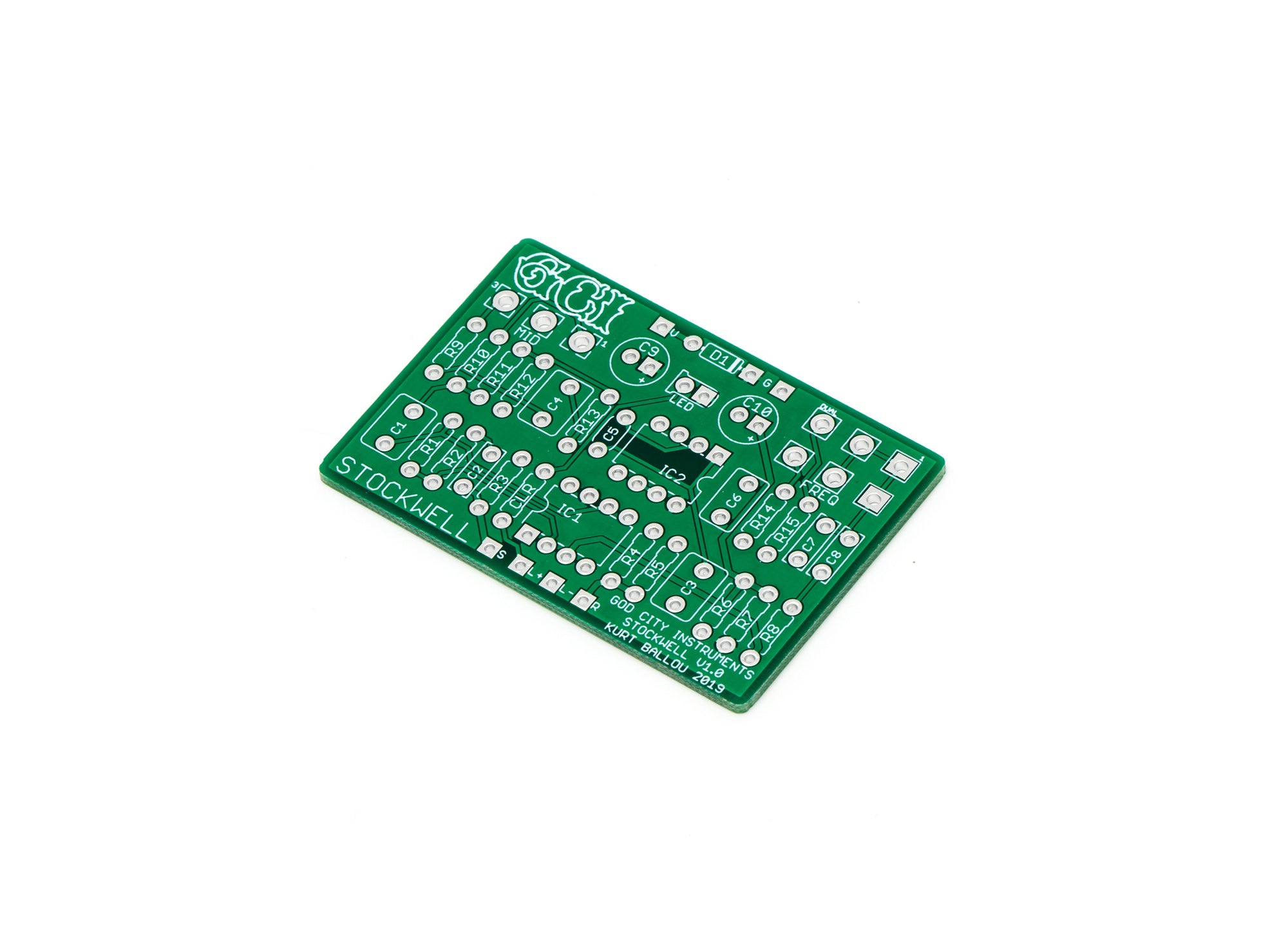

Sale is for PCB only. You must source the components and build the pedal yourself. To make foot switch wiring easier, we also suggest you buy the 3pdt utility switch.
Build documentation can be found here below. Please read before purchasing.
For your convenience, a parts kit can be purchased here:
Share your work, get tips, ask questions and help troubleshoot at our Facebook Group. Don't forget to agree to the group rules if you wish to join. GCI DIY PCB builders group
NOT FOR COMMERCIAL USE
